Frames and Garlands

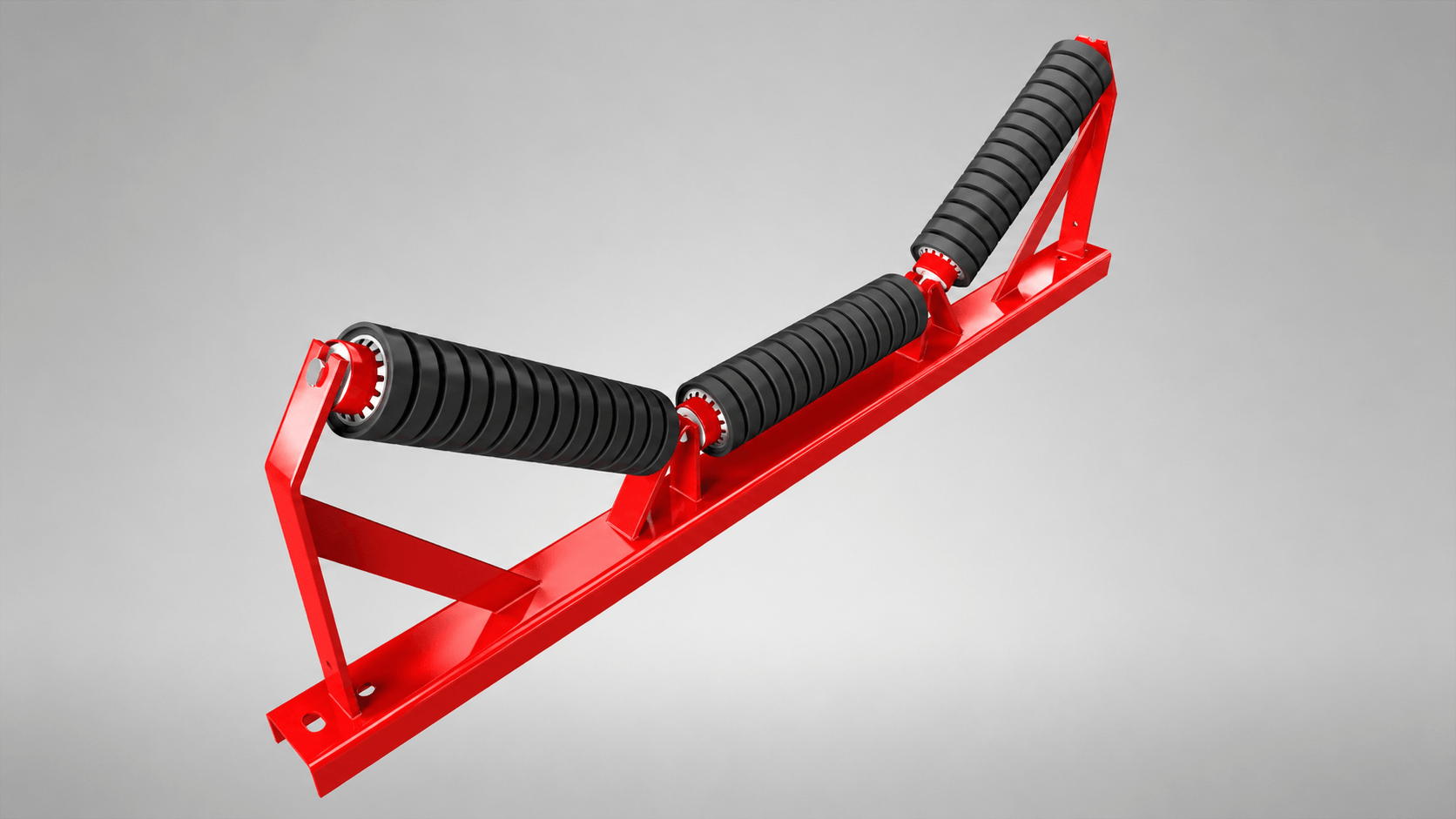

Jackdown and impact frames & idlers
- Jackdown frames in 3, 5, 6 or 10 roll arrangements.
- Retractable frames.
- Other special loading frames available – for example impact roller cassettes.
- Includes Jackdown, retracktable and other special impact arrangements.
Dimensions
- Belt widths from 350mm to 3 500mm (14″ to 138″)
- Various trough angles available.
Frames and Garlands portfolio
Designed for high-capacity bulk material transport.
Carry frames & idlers
- Trough or flat carry frames available (including transition frames).
- Combinations range from single roll to 5 roll designs.
Jackdown and impact frames & idlers
- Jackdown frames in 3, 5, 6 or 10 roll arrangements
- Retractable frames
- Other special loading frames available – for example impact roller cassettes.
Belt training frames & idlers
- Positive action training frames in all configurations.
- Side guide rollers orientate the frame and help ensure the belt tracks centrally on the conveyor.
Garlands
- Garlands are mostly used for rollers with larger diameters and in mining areas with wider belts and higher belt speeds, as well as in underground conveyors.
- Our garlands can be equipped with plain rollers or with disc rollers as required.
